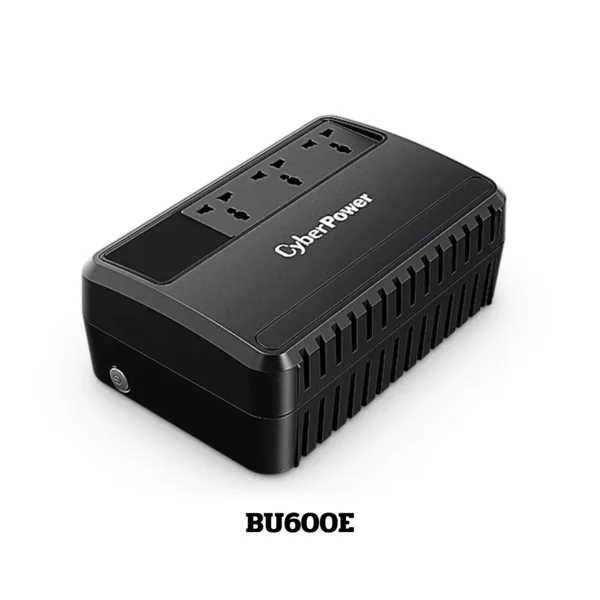

CyberPower BU600E
UPS BU600E-AS 600VA/360WATT
BU ENERGY-SAVING DESKTOP UPS The energy-saving technology saves up to 70% of UPS power consumption
——–
General
——–
Name: BU600E
Phase: Single Phase
Form Factor: Desktop
UPS Topology: Line-interactive
Energy Saving Technology: GreenPower UPS™ Bypass Technology
Phase: Single Phase
Form Factor: Desktop
UPS Topology: Line-interactive
Energy Saving Technology: GreenPower UPS™ Bypass Technology
——
Input
——
Generator Compatibility: Yes
Nominal Input Voltage ( Vac ): 230 ± 10%
Input Voltage Range ( Vac ): 165 ~ 295
Input Frequency ( Hz ): 50 ± 5, 60 ± 5
Input Frequency Detection: Auto-sensing
Rated Input Current ( A ): 2.72
Input Connector Type: NEMA 5-15P
Power Cord Length (ft.): 4
Power Cord Length (m.): 1.2
——-
Output
——-
Capacity (VA): 600
Capacity (Watts): 360
On Battery Waveform: Simulated Sine Wave
On Battery Voltage(s) ( Vac ): 230 ± 10 %
On Battery Frequency ( Hz ): 50 ± 1%, 60 ± 1%
Automatic Voltage Regulation (AVR): Single Boost, Single Buck
Overload Protection: Internal Current Limiting
Outlet(s) – Total: 3
Outlet Type: Universal x 3
Outlet(s) – Battery & Surge Protected: 3
Typical Transfer Time ( ms ): 4
——–
Battery
——–
Runtime at 60W ( min ): 30
Runtime at 90W ( min ): 18
Runtime at 200W ( min ): 3
Typical Recharge Time ( Hours ): 8
Start On Battery: Yes
User-replaceable: No
Battery Type: Sealed Lead-acid
——————————
Surge Protection & Filtering
——————————
Surge Suppression ( Joules ): 150
EMI/RFI Filtration: Yes
—————————-
Management & Communications
—————————-
LED Indicators: Power On, Line Mode, Battery Mode, Low Battery
Audible Alarms: Battery Mode, Low Battery, Overload, UPS Fault
———
Physical
———
Wall Mount Installation: Yes
Enclosure Construction: Plastic
Color: Black
—————————
Physical Size – UPS Module
—————————
Dimensions (WxHxD) (in.): 6.33 x 3.6 x 9.45
Dimensions (WxHxD) (mm.): 158 x 91.5 x 240
Weight (lbs.): 8.38
Weight (kg.): 3.9
——————–
Shipping Dimensions
——————–
Dimensions (WxHxD) (in.): 5.6 x 9.0 x 10.9
Dimensions (WxHxD) (mm.): 142 x 229 x 276
Weight (lbs.): 8.8
Weight (kg.): 4
————–
Environmental
————–
Operating Temperature (°F): 32 ~ 104
Operating Temperature (°C): 0 ~ 40
Operating Relative Humidity (Non-condensing) ( % ): 0 ~ 90
Operating Elevation ( feet/meters ): 0-9,843 feet (0-3,000 meters)
Storage Temperature (°F): -4 ~ 122
Storage Temperature (°C): -20 ~ 50
Storage Relative Humidity (Non-condensing) ( % ): 0 ~ 90
Storage Elevation ( feet/meters ): 0-9,843 feet (0-3,000 meters)
Online Thermal Dissipation ( BTU/hr ): 44.3
Audible Noise at 1.5M from Surface of Unit ( dBA ): 40
—————
Certifications
—————
RoHS: Yes
