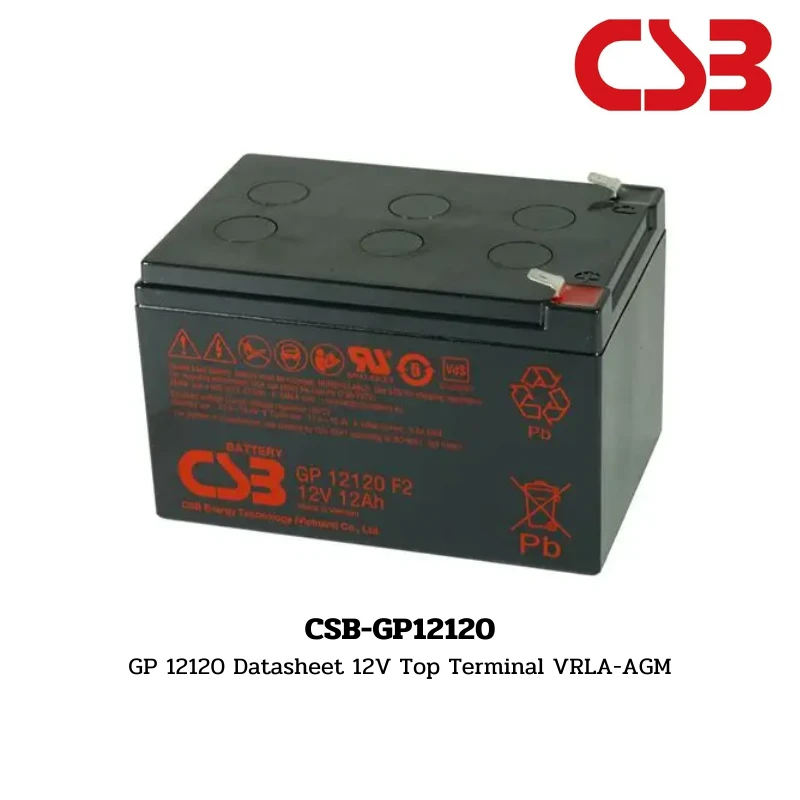

แบตเตอรี่ CSB CSB-GP12120 BATT 12V12AH CSB REPLACEMENT
Specifications
Voltage (Vdc): 12
Nominal Capacity (1.75 VPC @25°C): 12 Ah @20hr-rate
Ah Capacity (8-Hr 1.75 VPC @ 25°C): 11.2
Ah Capacity (20-Hr 1.75 VPC @ 25°C): 12.0
Ah Capacity (8-Hr 1.80 VPC @ 25°C): 10.96
Max Charge Current (A): 3.60
Max Discharge Current (A): 180
Short Circuit Current (A): 378
Internal Resistance (mΩ): Approx. 16.7
Terminal Type: F2 terminal -Faston Tab 250 *
Container Material: ABS (UL 94-HB) & Flame Retardant (94-V0) available upon request.
Physical
Weight (kg. / lb., Approx.): 3.67 / 8.09
Length (L) (mm / in): 151.0±2.0 / 5.94±0.08
Width (W) (mm / in): 98.0±1.0 / 3.86±0.04
Height (H) (mm / in): 100.3±1.5 / 3.95±0.06
Design Life
Standby Service: Up to 5 Years in Standby Service at 25°C
Eurobat (20°C): 3-5 Years Standard Commercial
Operating Temperature
Nominal: 25°C (77°F)
Discharge: -15°C – 50°C (5°F-122°F)
Charge/Storage: -15°C – 40°C (5°F – 104°F)
Voltage Settings
Float Charging Voltage: 13.5 – 13.8 Vdc/battery 25°C (77°F)
Eq. Charging Voltage: 14.4 – 15.0 Vdc/battery 25°C (77°F)
Self-Discharge
Rate: Less than 10% after 90 days, can be stored up to 6 months at 25°C (77°F)
