คำอธิบาย

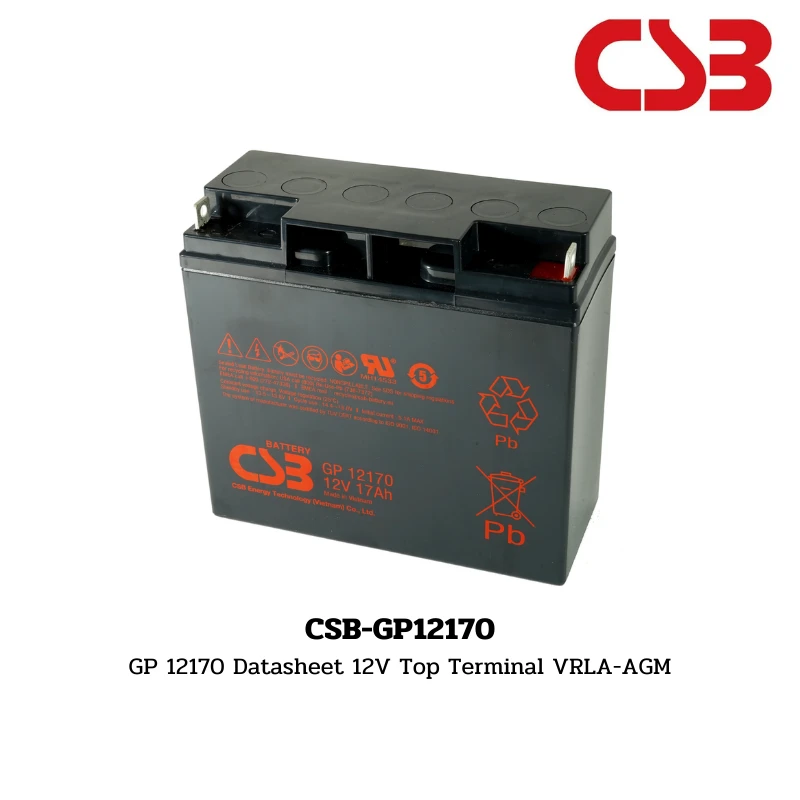

แบตเตอรี่ CSB CSB-GP12170 BATT 12V17AH CSB REPLACEMENT
Specifications
Voltage (Vdc): 12
Nominal Capacity (1.75 VPC @25°C): 17 Ah @20hr‐rate
Ah Capacity (8-Hr 1.75 VPC @ 25°C): 18.56
Ah Capacity (20-Hr 1.75 VPC @ 25°C): 18.20
Ah Capacity (8-Hr 1.80 VPC @ 25°C): 18.40
Max Charge Current (A): 5.10
Max Discharge Current (A): 230
Short Circuit Current (A): 532
Internal Resistance (mΩ): Approx. 14.0
Terminal Type: B1/B1B/B3 accept M5 bolt
Terminal Torque: 30.4±6.1 Kgf∙cm / 3.0±0.6 N∙m 26.4±5.3 Lbf∙in
Container Material: ABS (UL 94-HB) & Flame Retardant (94-V0) available upon request.
Physical
Weight (kg. / lb., Approx.): 5.50 / 12.12
Length (L) (mm / in): 181.0±2.0 mm 7.13±0.08 inch
Width (W) (mm / in): 76.2±1.0 mm 3.00±0.04 inch
Height (H) (mm / in): 167.0±2.0 mm 6.57±0.08 inch
Design Life
Standby Service: Up to 5 Years in Standby Service at 25°C
Eurobat (20°C): 3-5 Years Standard Commercial
Operating Temperature
Nominal: 25°C (77°F)
Discharge: -15°C – 50°C (5°F-122°F)
Charge/Storage: -15°C – 40°C (5°F – 104°F)
Voltage Settings
Float Charging Voltage: 13.5 – 13.8 Vdc/battery 25°C (77°F)
Eq. Charging Voltage: 14.4 – 15.0 Vdc/battery 25°C (77°F)
Self-Discharge
Rate: Less than 10% after 90 days, can be stored up to 6 months at 25°C (77°F)
