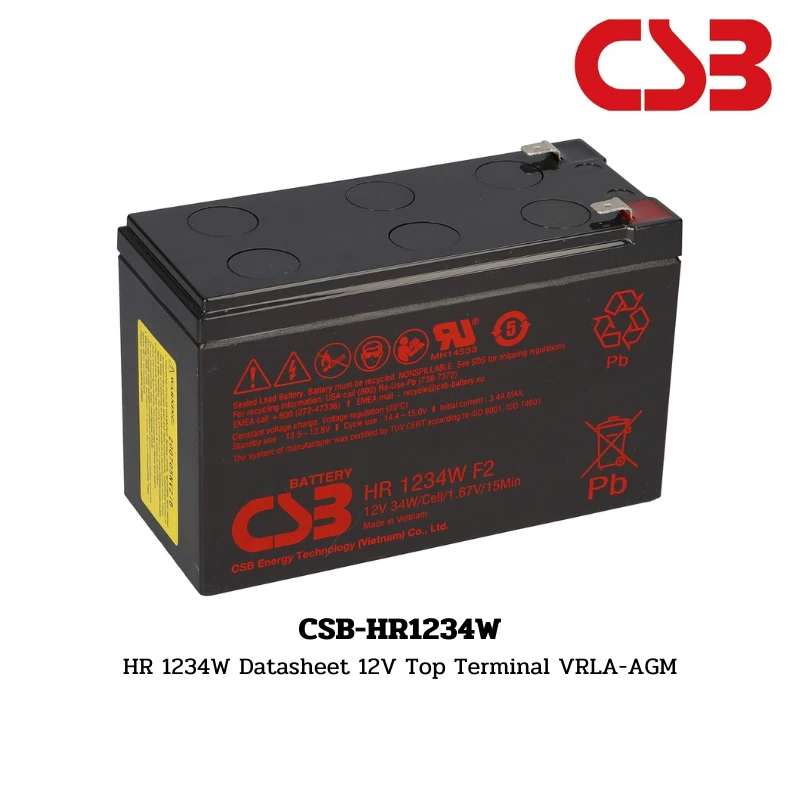

แบตเตอรี่ CSB CSB-HR1234W BATT 12V 34W CSB REPLACEMENT
Specifications
Voltage (Vdc): 12
Nominal Capacity (1.67 VPC @25°C): 34W @15min-rate
Watts Per Cell (5-Min 1.67 VPC @ 25°): 73.0
Watts Per Cell (15-Min 1.67 VPC @ 25°): 34.3
Max Charge Current (A): 3.40
Max Discharge Current (A): 130
Short Circuit Current (A): 349
Internal Resistance (mΩ): Approx. 19.0
Terminal Type: F2-Faston Tab250
Container Material: ABS (UL 94-HB) & Flame Retardant (94-V0) available upon request
Physical
Weight (kg. / lb., Approx.): 2.50 / 5.51
Length (L) (mm / in): 150.9±2.0 / 5.94±0.08
Width (W) (mm / in): 64.8±1.0 / 2.55±0.04
Height (H) (mm / in): 98.6±1.0 / 3.88±0.04
Design Life
Standby Service: Up to 5 Years in Standby Service at 25°C
Eurobat (20°C): 3-5 Years Standard Commercial
Operating Temperature
Nominal: 25°C (77°F)
Discharge: -15°C – 50°C (5°F-122°F)
Charge/Storage: -15°C – 40°C (5°F – 104°F)
Voltage Settings
Float Charging Voltage: 13.5 – 13.8 Vdc/battery 25°C (77°F)
Eq. Charging Voltage: 14.4 – 15.0 Vdc/battery 25°C (77°F)
Self-Discharge
Rate: Less than 10% after 90 days, can be stored up to 6 months at 25°C (77°F)
