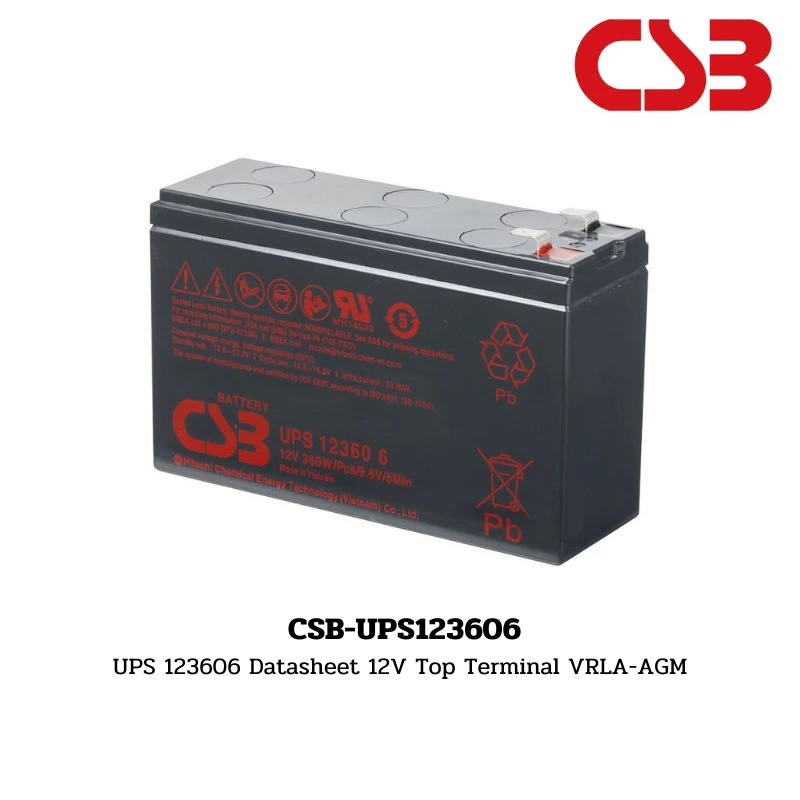

แบตเตอรี่ CSB CSB-UPS123606 BATT 12V 360Watt CSB REPLACEMENT
Specifications
Voltage (Vdc): 12
Nominal Capacity (9.60V per PCS @ 25°C): 360W @5min-rate
Watts Per Cell (5-Min 1.67 VPC @ 25°): 57.83
Watts Per Cell (15-Min 1.67 VPC @ 25°): 27.83
Max Charge Current (A): 3.00
Max Discharge Current (A): 130 *
Short Circuit Current (A): 325
Internal Resistance (mΩ): Approx. 20.70
Terminal Type: F2 terminal -Faston Tab 250 *
Container Material: ABS (UL 94-HB) & Flame Retardant (94-V0) available upon request
Physical
Weight (kg. / lb., Approx.): 1.97 / 4.34
Length (L) (mm / in): 150.9±2.0 / 5.94±0.08
Width (W) (mm / in): 51.0±1.0 / 2.01±0.04
Height (H) (mm / in): 98.6±1.0 / 3.88±0.04
Design Life
Standby Service: Up to 5 Years in Standby Service at 25°C
Eurobat (20°C ): 3-5 Years Standard Commercial
Operating Temperature
Nominal: 25°C (77°F)
Discharge: -15°C – 50°C (5°F-122°F)
Charge/Storage: -15°C – 40°C (5°F – 104°F)
Voltage Settings
Float Charging Voltage: 13.5 – 13.8 Vdc/battery 25°C (77°F)
Eq. Charging Voltage: 14.4 – 15.0 Vdc/battery 25°C (77°F)
Self-Discharge
Rate: Less than 10% after 90 days, can be stored up to 6 months at 25°C (77°F)
