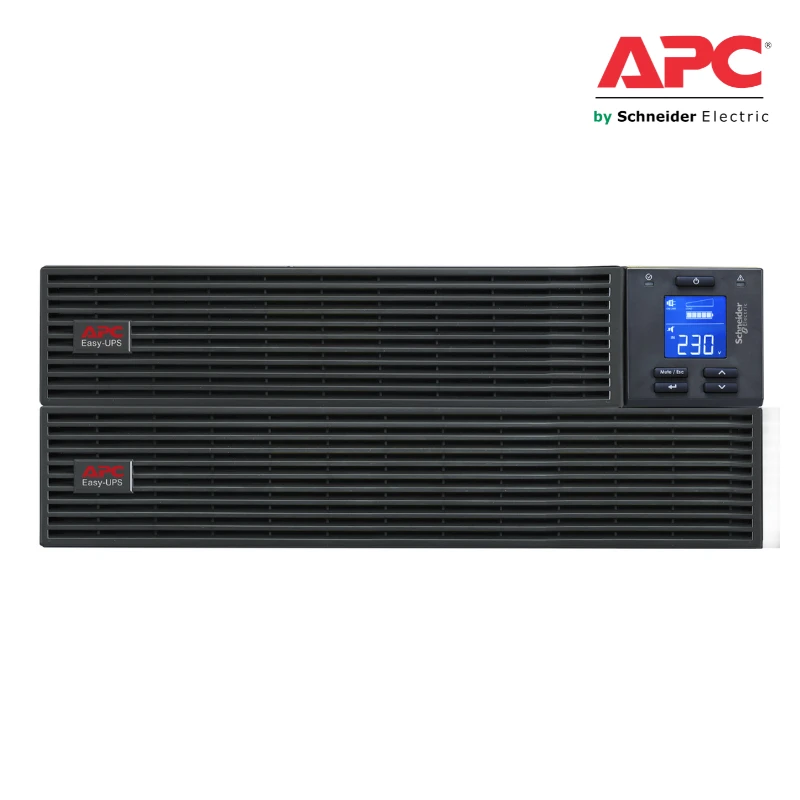

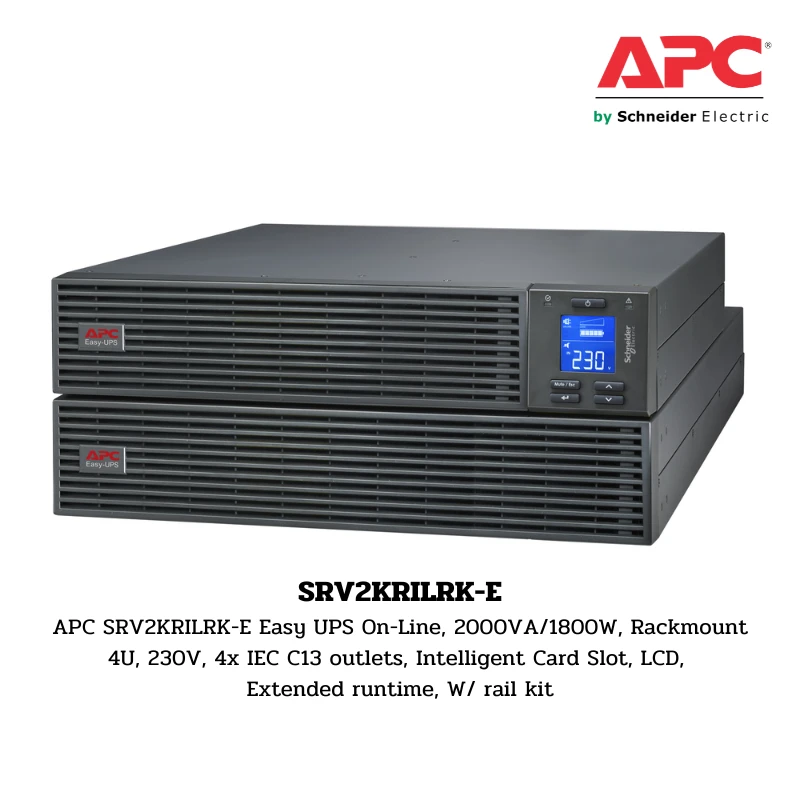

เครื่องสำรองไฟ UPS APC Easy UPS On-Line SRV รุ่น SRV2KRILRK-E
รายละเอียดสินค้า
เครื่องสำรองไฟ UPS APC Easy UPS On-Line SRV รุ่น SRV2KRILRK-E

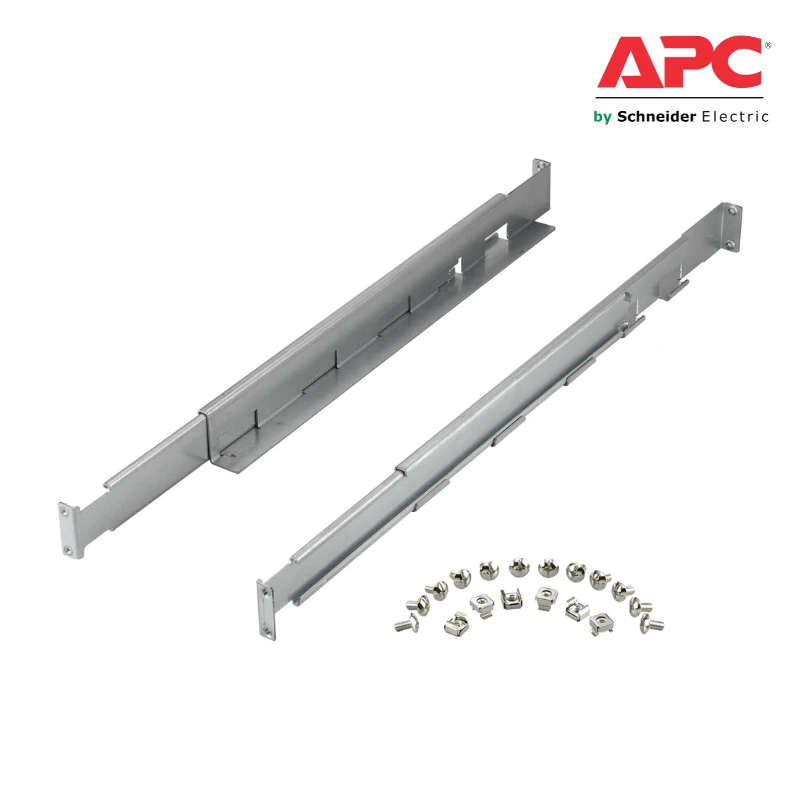

APC SRV2KRILRK-E Easy UPS On-Line, 2000VA/1800W, Rackmount 4U, 230V, 4x IEC C13 outlets, Intelligent Card Slot, LCD, Extended runtime, W/ rail kit
฿37,250.00
ติดต่อเราเพิ่มสั่งซื้อ สอบถาม หรือขอใบเสนอราคา
Loading...
คำอธิบาย
เครื่องสำรองไฟ UPS APC Easy UPS On-Line SRV รุ่น SRV2KRILRK-E
APC SRV2KRILRK-E Easy UPS On-Line, 2000VA/1800W, Rackmount 4U, 230V, 4x IEC C13 outlets, Intelligent Card Slot, LCD, Extended runtime, W/ rail kit
APC Easy UPS On-Line รุ่น SRV2KRILRK-E เป็นเครื่องสำรองไฟแบบ Online Double Conversion ขนาด 2000VA / 1800W สำหรับติดตั้งในตู้ Rack โดยมีความสูง 4U รองรับแรงดันไฟฟ้าเข้าและออก 230V พร้อมช่องจ่ายไฟ 4× IEC C13, หน้าจอ LCD แบบมัลติฟังก์ชัน, Intelligent Card Slot และรองรับการเพิ่ม Runtime ด้วยแบตเตอรี่ภายนอก มาพร้อม Rail Kit สำหรับการติดตั้งแบบ Rack
ข้อมูลจำเพาะ (Specification)
| รายการ | รายละเอียด (Description) |
|---|---|
| Product Model | SRV2KRILRK-E |
| Range of Product | Easy UPS On-Line |
| Product or Component Type | UPS |
| UPS Topology | Online Double Conversion |
| UPS Presentation | High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions |
| Rated Power in VA | 2000 VA |
| Rated Power in W | 1800 W |
| Maximum Configurable Power in VA | 2000 VA |
| Maximum Configurable Power in W | 1800 W |
| Load Runtime | 22 min 12 s |
| Load Runtime Range | 180–1800 W |
| Maximum Capacity Used | 100% |
| Waveform Type | Sine Wave |
| Crest Factor | 3:1 |
| Harmonic Distortion | 3% |
| Efficiency | 88% at Full Load |
| Surge Energy Rating | 600 J |
| Main Input Voltage | 230 V AC, 1 Phase |
| Other Input Voltage | 220 V / 240 V |
| Input Connection | IEC 60320 C20 |
| Input Frequency | 40–70 Hz, Auto Sensing |
| Input Voltage Range | 105–300 V at 40% Load; 180–285 V at Full Load |
| Output Voltage | 230 V AC, 1 Phase |
| Other Output Voltage | 220 V / 240 V |
| Configurable Output Voltage | Configurable for 220 / 230 / 240 V Nominal Output Voltage |
| Output Frequency | 50/60 Hz ±3 Hz, Synchronized to Mains |

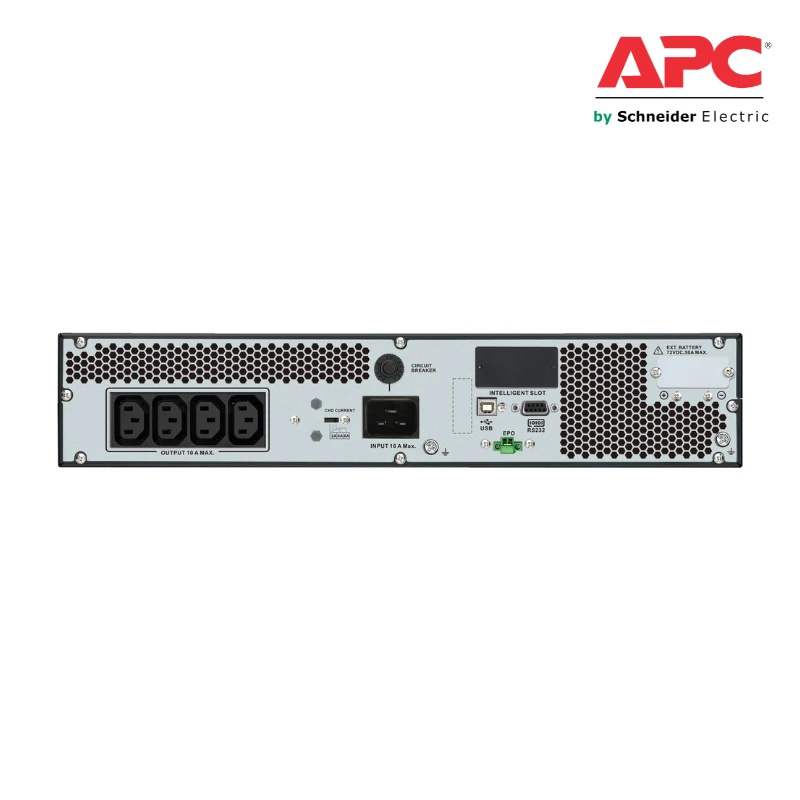

| Output Connection | 4× IEC 60320 C13 |
| Bypass Type | Internal Bypass (Automatic and Manual) |
| Battery Type | External Lead-acid Battery |
| Battery Type / Size | Lead-acid, External; Size: Included |
| Battery Voltage | 72 V |
| Battery Graph Comment | Curve fit to measured runtime data. All measurements taken with new, fully charged batteries, at typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output. |
| Extendable Runtime | 1 |
| Included Battery Module | 1 |
| Empty Battery Slot | 0 |
| Typical Recharge Time | 5.5 h |
| Battery Life | 3–5 years |
| Battery Charging Power | 525 W Rated |
| Battery Power in VAh | 1382 VAh Runtime |
| Control Panel | Multifunction LCD Status and Control Console |
| Free Slot | 1 |
| Alarm | Alarm when on Battery; Distinctive Low Battery Alarm; Overload Continuous Tone Alarm |
| UPS Connectivity | Serial Port; USB Port |
| Available Expansion Slot | 1 |
| Number of Rack Units | 4U |
| Number of Cables | 1 |
| Color | Black (RAL 7010) |
| Height | 172 mm |
| Width | 437 mm |
| Depth | 632 mm |
| Product Weight | 51.4 kg |
| Mounting Location | Front |
| Mounting Preference | Lower |
| Mounting Mode | Rack Mount |
| USB Compatible | No |
| Mounting Position | Horizontal |
| Mounting Mode / Kit | Rack Mount with Included Kit |
| Number of Power Module Filled Slots | 0 |
| Number of Power Module Free Slots | 0 |
| Redundant | No |
| Operating Ambient Temperature | 0–40 °C |
| Storage Ambient Temperature | -20–50 °C |
| Operating Altitude | 0–3000 m |
| Storage Altitude | 0–15000 m |
| IP Protection | IP20 |
| Relative Humidity | 0–95% Non-condensing |
| Storage Relative Humidity | 0–95% Non-condensing |
| Acoustic Level | 53 dBA |
| Heat Dissipation | 759 Btu/h |
| Product Certification | CE; UKCA; TISI |
| Standards | EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 48 cm |
| Package 1 Width | 60 cm |
| Package 1 Length | 70 cm |
| Package 1 Weight | 66.2 kg |
| Contractual Warranty | 24 Months |
2 Yrs Warranty
