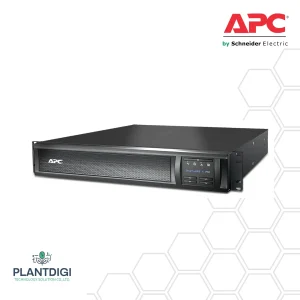

APC SMX750I

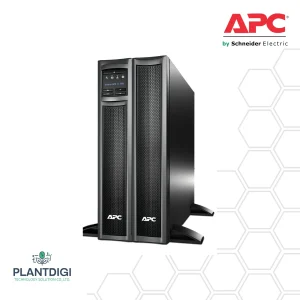

APC Smart-UPS X, Line Interactive, 750VA, Rack/tower convertible 2U, 230V, 8x C13 IEC, SmartSlot, Extended runtime
———
Overview
———–
Presentation:Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Lead time :Usually Ships within 2 Weeks
————-
Main
————–
รันไทม์สําหรับโหลด 600 W
ต่ำสุด-สูงสุด: 60-600 W 14min 14s
ความจุสูงสุดที่ใช้: 100 %
Main Input Voltage: 230 V
Other Input Voltage: 220 V , 240 V
Main Output Voltage: 230 V
Rated power in W: 600 W
Rated power in VA: 750 VA
Product or component type: Uninterruptible power supply (UPS)
Input Connection Type: IEC 320 C14
output connection type: 8 IEC 320 C13 , 2 IEC Jumpers
number of rack unit: 2U
Cable length: 1.8 m
Number of cables: 1
Battery type: Lead-acid battery
Provided equipment: CD with software, Documentation CD, Installation guide, Rack mounting brackets, Removable support feet, Smart UPS signalling RS-232 cable, User manual
Range of product: Smart-UPS
—————
Complementary
—————
Communication port type: SmartSlot
—————-
Batteries & Runtime
——————-
Extended runtime: 0
Number of battery filled slots: 1
Number of battery free slots: 1
Battery recharge time: 3 h
Number of battery replacement quantity: 1
Overcurrent protection: 60 A
Battery life: 3…5 year(s)
Replacement battery: APCRBC116
Battery charger power: 104 W rated
————-
General
————
Number of power module filled slots: 0
Number of power module free slots: 0
product web sub-family: Extended run
Redundant: No
———
Physical
———
Colour: Black
Height: 8.9 cm
Width: 43.2 cm
Depth: 49 cm
Net weight: 22.05 kg
Mounting preference: Lower
mounting mode: Rack-mounted with kit
Two post mountable: 1
USB compatible: No
—–
Input
—–
Input voltage limits: 151…302 V adjustable
160…286 V
Network frequency: 50/60 Hz +/- 3 Hz auto-sensing
——-
Output
——-
Harmonic distortion: Less than 5 %
Maximum configurable power in VA: 750 VA
Maximum configurable power in W: 600 W
UPS type: Line interactive
Wave type: Sine wave
Output frequency: 50/60 Hz +/- 3 Hz sync to mains
————
Conformance
————
Product certifications: CE, CSA, EAC, RCM, UK PSTI
Standards: EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018
————-
Environmental
————-
acoustic level: 40 dBA
Heat dissipation: 69 Btu/h
Operating altitude: 0…10000 ft
Ambient air temperature for operation: 0…40 °C
Ambient air temperature for storage: -15…45 °C
Storage altitude: 0.0000000000…15240.0000000000 m
Relative humidity: 0…95 %
Storage Relative Humidity: 0…95 %
—————————-
Communications & Management
—————————-
Control panel: Multifunction LCD status and control console
Free slots: 1
Alarm: Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
——————————–
Surge Protection and Filtering
——————————–
Surge energy rate: 645 J
Noise suppression: Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449
—————
Packing Units
—————
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 24.6 cm
Package 1 Width: 58.9 cm
Package 1 Length: 62 cm
Package 1 Weight: 26.5 kg
Unit Type of Package 2: PAL
Number of Units in Package 2: 16
Package 2 Height: 134 cm
Package 2 Width: 100 cm
Package 2 Length: 120 cm
Package 2 Weight: 423.104 kg
——————–
Contractual warranty
——————–
Warranty: 3 years repair or replace (excluding battery) and 2 years for battery
